Product Appearance

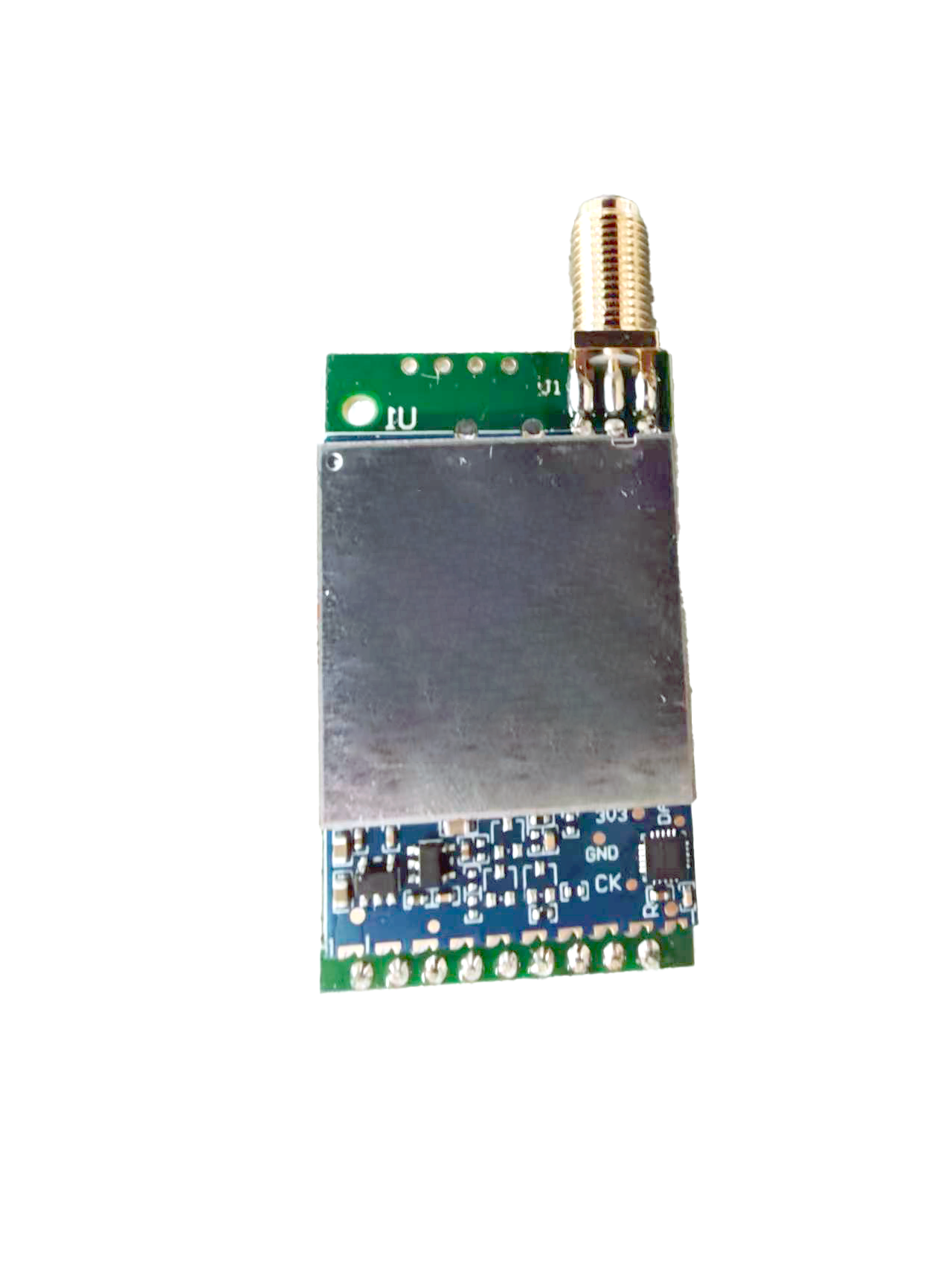

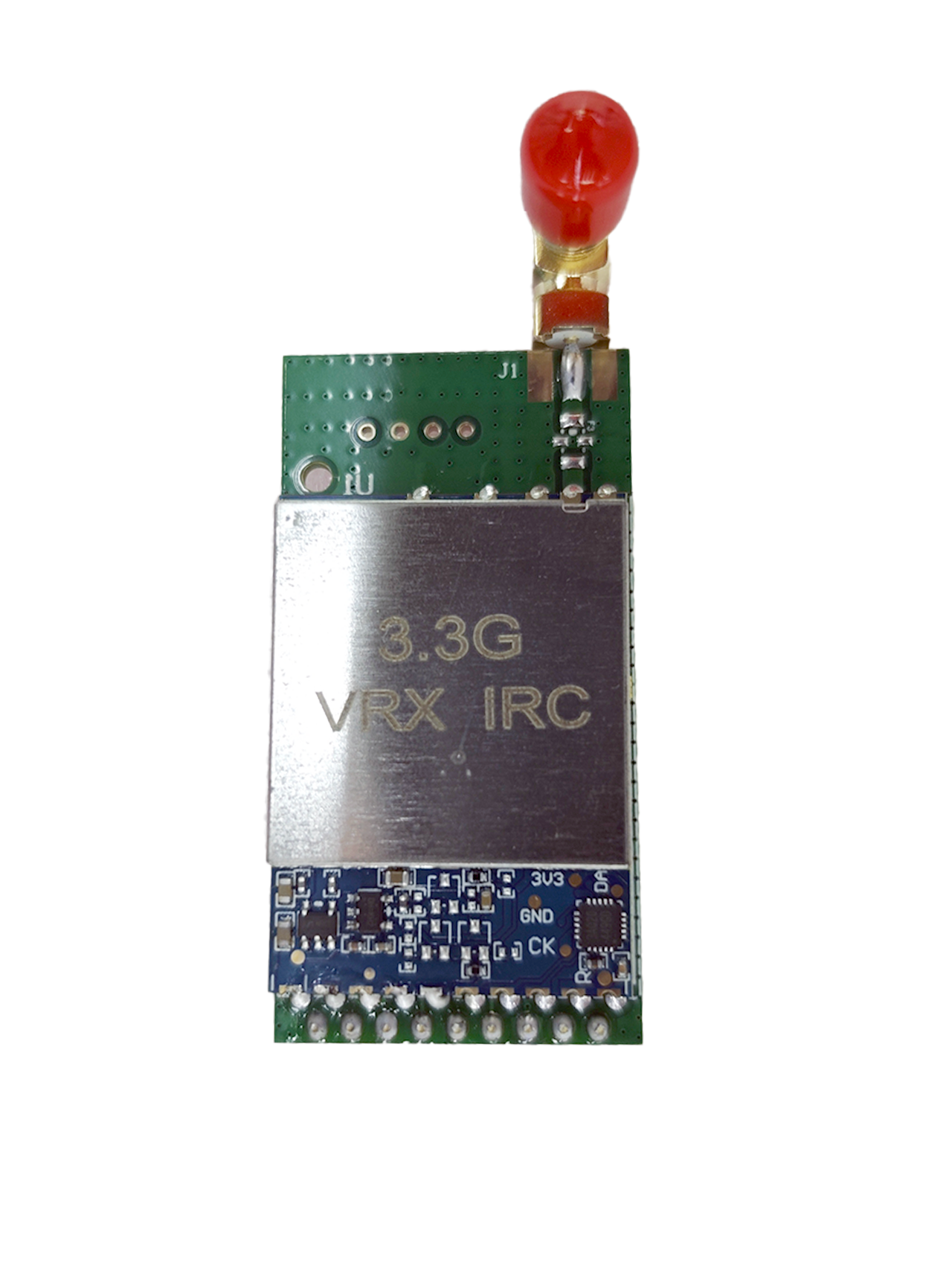

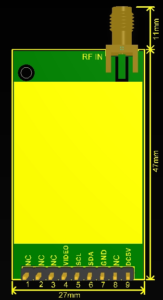

Product Dimension

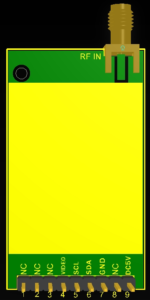

Product Interface Definition
| interface | |
| NC | empty foot |
| NC | empty foot |
| NC | empty foot |
| VIDEO | video output with an amplitude of 1Vp-p |
| SCL | I2C clock cable |
| SDA | I2C data cable |
| GND | System grounding interface |
| NC | empty foot |
| DC 5V | 4.5-5.5V input, maximum not recommended to exceed 6V, recommended 5V |
Product Frequency
Frequency range: 3000-4999MHz (can write any frequency point)
Product Parameters
| Name | Minimum | Median | Maximum | Remarks (Test Conditions) |
| reception frequency | 3000MHz | 4000MHz | 4999MHz | |
| input impedance | 50Ω | Antenna port impedance | ||
| operating Voltage | 4.5V | 5V | 5.5V | DC |
| operating current | 0.38A | Power supply 5V data | ||
| reception sensitivity | -95dBm±2 | |||
| Video amplitude | 1Vp-p | |||
| Maximum Input | 10dBm | Maximum input power | ||
| Operating Temperature | -20℃ | 25℃ | 75℃ | |
| Operating Humidity | 10% | 50% | 95% | |
| storage environment | -40℃ | 25℃ | 90℃ | Storage temperature |
