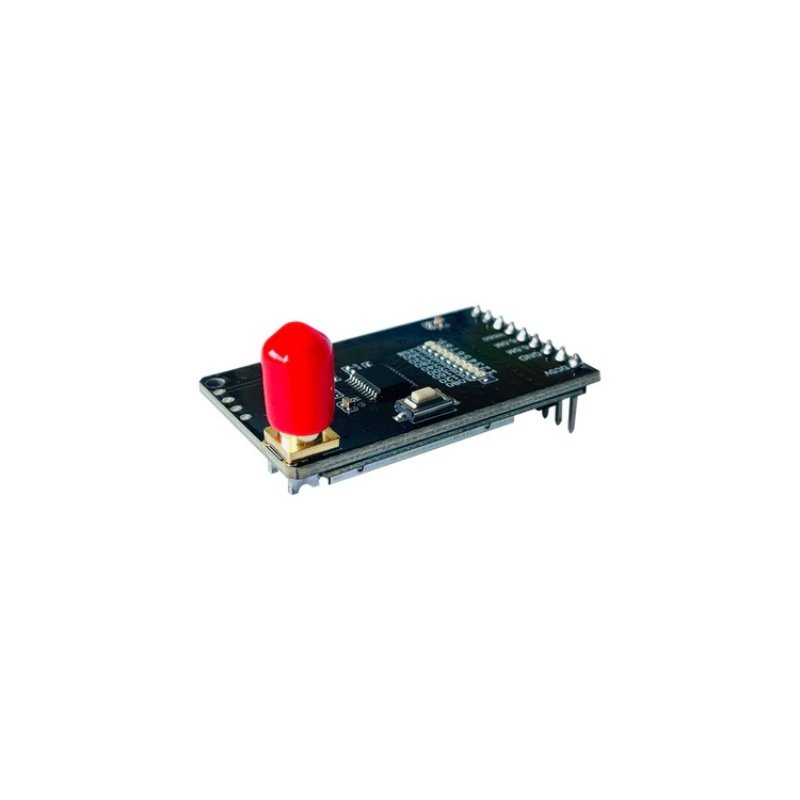

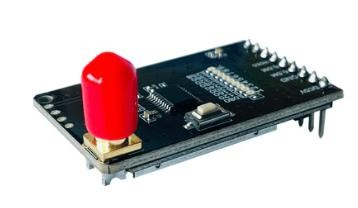

DMKR 1.2GHz 9CH 7V-36V FPV Analog VRX

Product





Specification



Receiving frequency: 9CH    (1050MHz to 1380MHz)

Input voltage: DC 7-36V

Current Consumption: (280±40）mA @5V

Button control and LED indicators

On board regulator output: 5V 1A RX

Sensitivity: -95dBm

Voltage Standing Wave Ratio: 2:1 Demodulation System: FM/PLLANT.

Input Impedance: 50Ω, Typ.

Video Output Impedance: 75Ω, Typ.

Audio Subcarrier Frequency: 6.0MHz (AR) 6.5 MHz (AL)

RF Connector: SMA

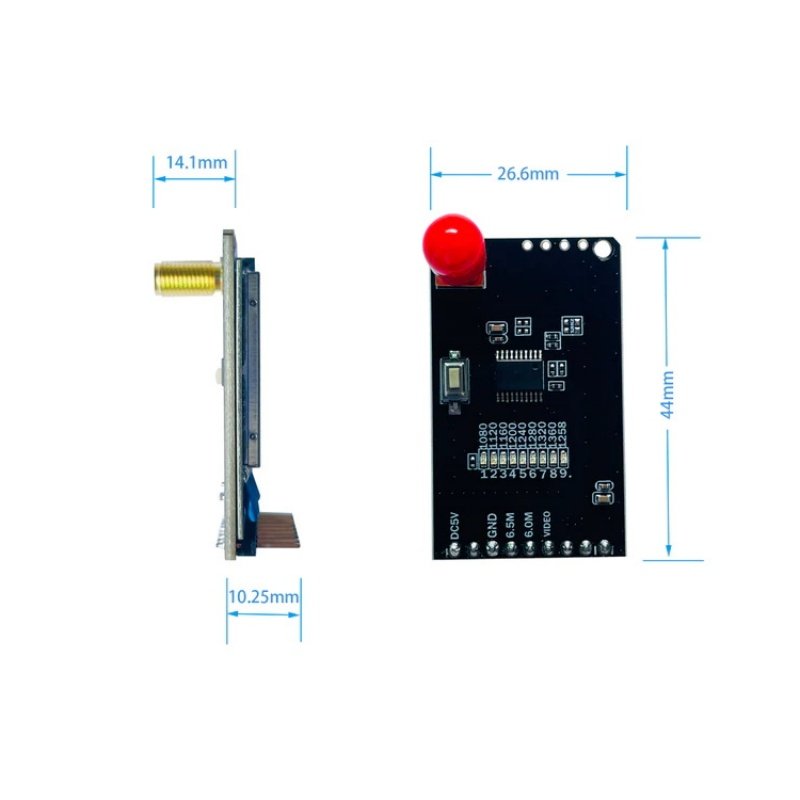

Dimensions: 44mm (L)*27mm (W)*27mm (H)

Weight: 20g ( w/o antanna)

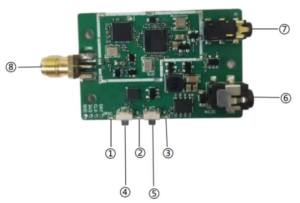

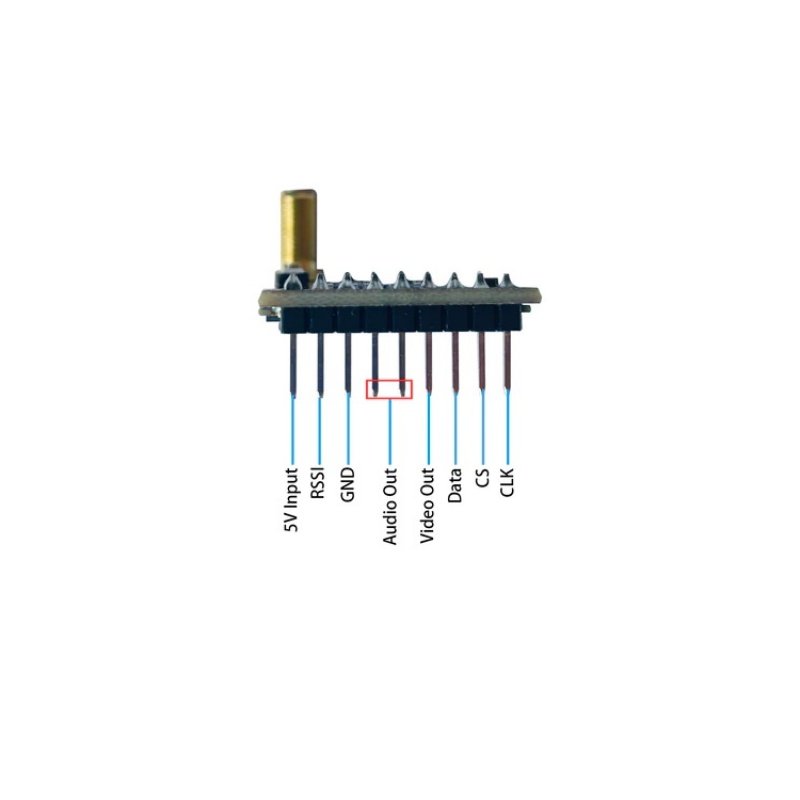

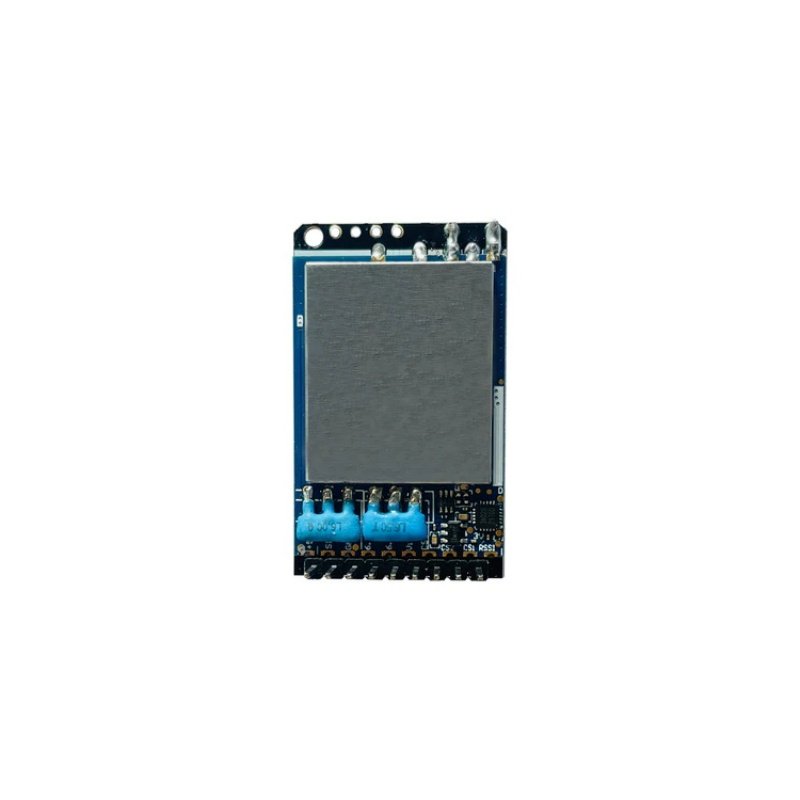

Product Introduction





1. Switch Indicator Light: Gree LED
2. Band Indicator Light: Blue LED
3. Channel Indicator Light: Red LED
4. Power on/off Button
5. Channel Switch Button
6. Power Input Interface
7. AV out Interface
8. SMA antenna Interface.



Button Controls and LED Indicators Definitions



1. Button ⑤ is the channel switch button. Each press of ⑤ will switch to the next frequency point. The corresponding red LED ③ indicator will flash 1, 2, 3, 4, 5, 6, 7, 8 or 9 times. The frequency point selection keys are cyclic.For details, refer to the following table.

Channel	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8	CH9
RedLED	Flash Once	Flash Twice	Flash 3 times	Flash 4 times	Flash 5 times	Flash 6 times	Flash 7 times	Flash 8 times	Flash 9 times



1. Button ④ is the power on/off control button. When the DC power supply enters the DC jack, the green LED ① is on. Press and hold key ④ for more than 2 seconds, the DC power supply turns off, and all led lights turn off. Press key ④ again for more than 2 seconds, the DC power supply is turned on, and the corresponding channel indicator flashes according to the channel number.



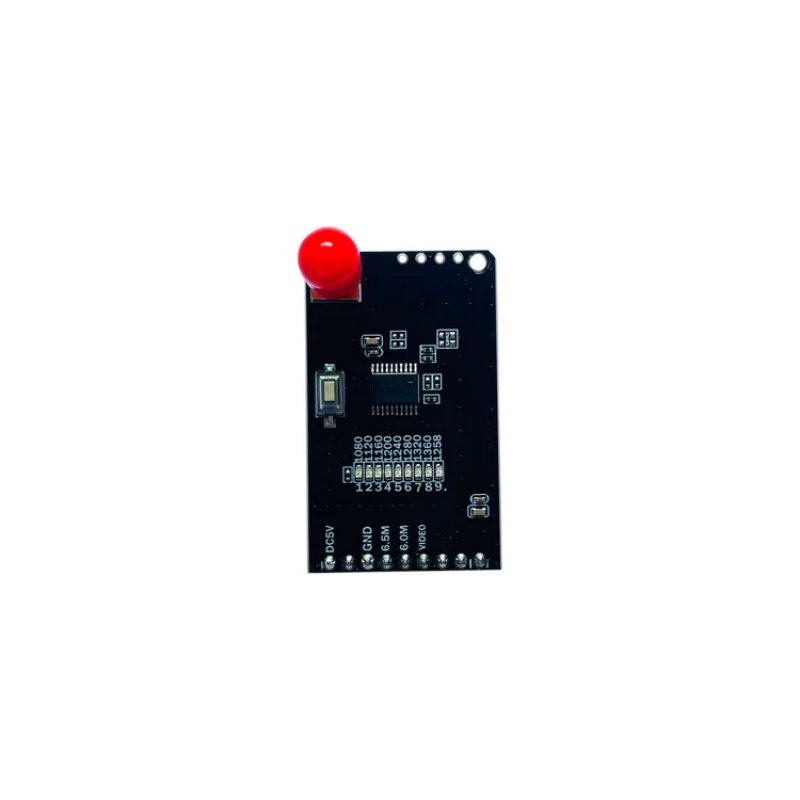

Frequency Table



Channel	CH1	CH2	CH4	CH5	CH6	CH7	CH8	CH9
(MHz)	1080	1120	1200	1240	1280	1320	1360	1258



Packing List



1. 2GVRX *1

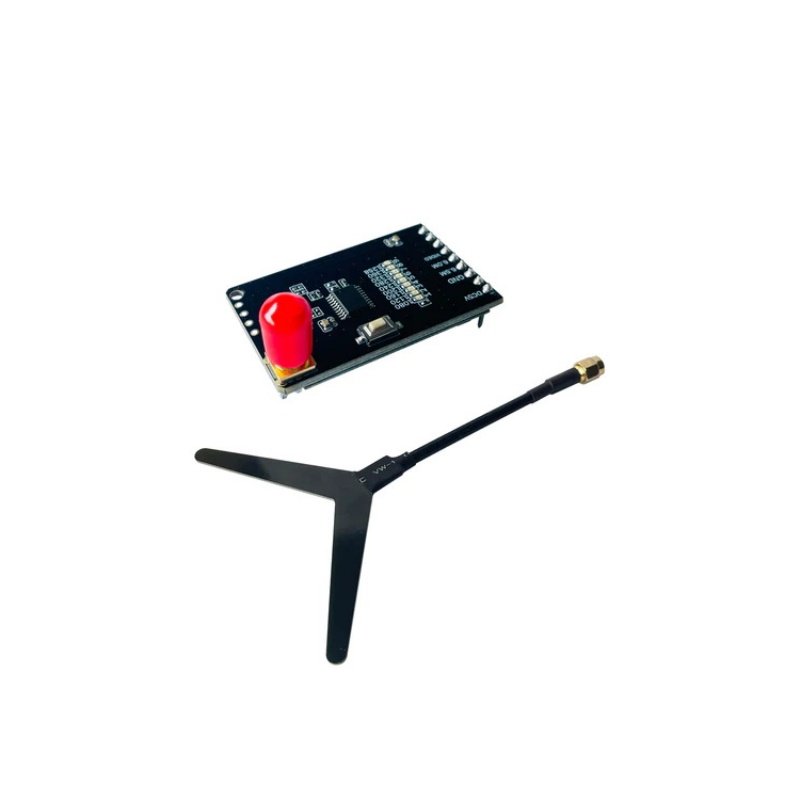

2. Y type Antenna *1
3. Video wire *1
4. Power wire *1



Legal Disclaimer
Important Notice on Radio Frequency Usage



1.DMKR high-performance VRX modules  are powerful RF instruments.Designed for specialized industrial, research, and laboratory applications. By purchasing this product, the buyer acknowledges and agrees to the following:

2.Regulatory Compliance: It is the buyer’s sole responsibility to ensure that the operation of this device complies with local laws, radio frequency regulations, and licensing requirements in their respective country or region.

3.Professional Use Only: This equipment should only be operated by qualified professionals. DMKR is not liable for any legal consequences, fines, or damages resulting from illegal or improper use.

4.Frequency Licensing: The 7.2GHz band may be restricted or require a specific technician’s license for operation. Please consult your local telecommunications authority (e.g., FCC, OFCOM, BNetzA) before powering on the device.

5.Risk of Misuse: The user assumes all risks associated with the deployment of this hardware. DMKR does not authorize the use of these devices in prohibited areas, including but not limited to, near airports or restricted government airspace.

6.No Liability: In no event shall DMKR be held liable for any direct, indirect, or incidental damages, including hardware failure of the UAV/UGV or legal intervention, arising out of the use or inability to use this product.

7.Safety Warning: High-power RF devices generate significant heat and radiation. Ensure proper thermal management and maintain a safe distance during operation.

8.Hardware Modification: Unauthorized modification of the firmware or hardware may void compliance certifications and safety protections.
