DMKR 5Inch 5.8GHz 7.4V 1430mAh 800Dpro FPV Analog Goggle

Product Feature



●WithDVR,you canrecord videos anytime and anywhere;
●Lowpowerconsumption;
●Double antenna reception to make the signal more stable;
●Auto-Searching, support a key search frequency;
●5Inch 800*480 dot high brightness LCD screen;
●Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
●Built-in 7.4V/1430mAh high-capacity Li-ion polymer Battery;
●Universal DC055 charging interface;
●Real-time video return, Very low time-delay;
●The menu supports 8 languages;
●Support external video signal input;
●Support Audio signal output (You can connect headphones)



Product Specification



Name	5.8GFPVGoggles
LCD Screen	Screensize: 5Inch
	Resolution: 800*480
	DisplayRatio: 16:9
	ViewAngle: 6o’clock
	Brightness: 300cd/m²withhighbrightnessbacklightLED
Videodelay	Videotime-delaylessthan20ms
Lens	2.8XFresnelLens,92%transparentratenodistortoflight
Interface	Antenna	2XRP-SMAmale
	DC055	Tochargethebattery
	AVJack	ExternalvideosignalsinputorinternalAudiosignaloutput
	Cardslot	TF-Card,Supportupto32G(C10recommend)
DVR	RECsize: VGA/D1/HD Selectable
	RECsound: ON/OFF Selectable
	RECtime: OFF/3min/5min/10min Selectable
	Framerate: 30Frames
	Compressformat: MJPEG
	Recordfileformat: AVI
Languages	English,German,French,Spanish,Ltalian,Chinese,Russian,Japanese
power	Poweradapter: DC12V/2A(DC055interface)
	Battery: 7.4V/1430mAh, DVRmoduleON:Eachfullchargerevivearound2.5hrworkingtime DVRmoduleOFF:Eachfullchargerevivearound3.5hrworkingtime
	PowerConsumption: *Normalmode:Thedeviceoperatingcurrentof400mAat3.7V; *RecordMode:Thedeviceoperatingcurrentof620mAat3.7V; *Built-inbatterymaximumchargecurrentof800mA;
Wireless	FrequencyTable(MHz)
		CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
	BandA	5865	5845	5825	5805	5785	5765	5745	5725
	BandB	5733	5752	5771	5790	5809	5828	5847	5866
	BandE	5705	5685	5665	5645	5885	5905	5925	5945
	BandF	5740	5760	5780	5800	5820	5840	5860	5880
	BandR	5658	5695	5732	5769	5806	5843	5880	5917
Body	Dimension: 180mm*140mm*84mm Weight: 410g(withheadband,notincludedantennas)



* Note: Cannot record video input from AV port. *

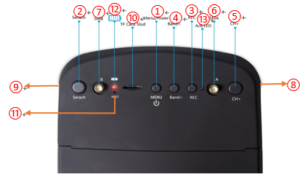

Product Discription





• Key 1: Short press into MENU mode; Long press (More than 2 sec) for Power ON/OFF.
• Key 2: Short press for Auto-Searching; Long press (More than 1.5 sec) into AV mode.
• Key 3: Short press to start or stop Recording.
• Key 4: Short press for Band+ (Change bands A-B-E-F-R circularly).
• Key 5: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
• Antenna port A: RP-SMA male.
• Antenna port B: RP-SMA male.
• AV Jack: In RF receiving mode can output Audio signal; In AV mode can enter the video signal.
• DC055 Charging port: Supports DC12V only.
• Card slot: Used for inserting memory card.
• RESET: Power Reset.
• Charging indicator: When is charging, the red light is on; When is full, the green light is on.RF module work indicator A/B: Module A works red, and module B works green



Menu Instruction



In the normal mode, press Key 1 to enter the MENU mode.

In MENU mode:

Key 1: Scroll options bar.

Key 2: Auto-Searching.

Key 3: Invalid.

Key 4: Enter / Value +.

Key 5: Enter / Value -.



Playback Instruction



In the menu mode, select the “DVR” option bar to enter the DVR mode.

In DVR mode:

Key 1: Return / Quit Playback mode.

Key 2: Delete current file.

Key 3: Play / Pause.

Key 4: Forward selection of video / Fast Forward (When video is playing).

Key 5: Backward selection of video / Fast Rewind (When video is playing).



AV Port Instruction

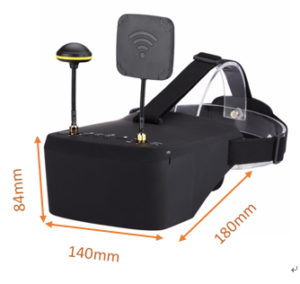

Dimension Diagram



not include antennas and headband





Safety Instruction



1. Read the entire instruction manual to become familiar with the features of the product before operating.
2. Age Recommendation: Over 14 years old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
3. Please avoid wet or humid environments.
4. Please use standard DC055 charger, charging voltage can only be DC12V.
5. Audio output and Video input cannot work at the same time.
