Product Feature
With DVR,you can record videos anytime and anywhere;
Low power consumption;
Double antenna reception to make the signal more stable;
Auto-Searching,support a key search frequency;
4.3 Inch 800*480 high brightness LCD screen;
Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
Universal USB charging interface;
Real-time video return,Very low time-delay;
Bilingual menu in support of Chinese and English;
Support external video signal input or output;
Support DC 5-23V wide voltage;
Product Specification
| Model | SOLOGOOD 5803 | ||||||||
| Name | 5.8G FPV Monitor | ||||||||
| LCD Screen | Screen size : 4.3 inch IPS | ||||||||
| Resolution：800*480 | |||||||||
| Display Ratio：16 : 9 | |||||||||
| View Angle：Full view | |||||||||
| Brightness：500cd/m² with high brightness backlight LED | |||||||||
| Video delay | Video time-delay less than 20ms | ||||||||
| Interface | Antenna | 2*RP-SMA male | |||||||
| USB | To charge the battery | ||||||||
| AV Jack | External video signals input or output | ||||||||
| Card slot | TF-Card,Support up to 32G(C10 recommend) | ||||||||
|
DVR |
REC：VGA/D1/HD Selectable | ||||||||
| REC sound：ON/OFF Selectable | |||||||||
| REC time：OFF/3min/5min/10min Selectable | |||||||||
| Frame rate：30 Frames | |||||||||
| Compress format：MJPEG | |||||||||
| Record file format ：AVI | |||||||||
| Languages | English and Chinese | ||||||||
|
Power Supply |
Power adapter：DC5V/2A,Support DC5-23V | ||||||||
| Buttery：3.7V/1200mAh,
DVR module ON : Each full charge revive around 2.5hr working time DVR module OFF : Each full charge revive around 3.5hr working time |
|||||||||
| Power Consumption ：
*Normal mode：The device operating current of 400mA at 3.7V; *Record mode：The device operating current of 400mA at 3.7V; *Built-in battery maximum charge current of 500mA; |
|||||||||
|
Wireless |
Frequency Table(MHz) | ||||||||
| CH1 | CH3 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | ||
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 | |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 | |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 | |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 | |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 | |
| Body | Dimension：146*80*13mm | ||||||||
| Weight：159g(not included antennas) | |||||||||

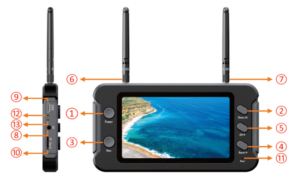

Product Description
| ① Key 1 : Short press into MEMU mode; Long press (More than 2 sec) for Power ON/OFF.
② Key 2 : Short press for Auto-Searching; Long press (More than 1.5 sec) into AV mode. ③ Key 3 : Short press to start or stop Recording. ④ Key 4 : Short press for Band+(Change bands A-B-E-F-R circularly). ⑤ Key 5 : Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly). ⑥ Antenna port A : RP-SMA male. ⑦ Antenna port B : RP-SMA male. ⑧ AV Jack : in RF receiving mode can output video signal; in AV mode can enter the video signal. ⑨ Micro-USB Charging port : support DC5-23V wide voltage ⑩ Card slot : Used for inserting memory card. 11 RESET : Power Reset. 12 Charging indicator : When is charging,the red light is on;When is full,the green lights is on. 13 REC indicator : Show the different working states of the DVR module. Menu instructiom : In the normal mode, press key 1 to enter the MENU mode. In MENU mode : Key 1 : Scrol options bar. Key 2 : Auto-Searching. Key 3 : Invalid. Key 4 : Enter /Value +. Key 5 : Enter/ Value-. Playback lnstructions : In the menu mode,select the “DVR” option bar to enter the DVR mode. In DVR mode : Key 1 : Return/Quit Playback mode. Key 2 : Delete current file. Key 3 : Play/Pause. Key 4 : Forward selection of video/Fast Forward(When video is playing). |
Key 5 : Backward selection of video /Fast Rewind(When video is playing).
AV Port Instruction

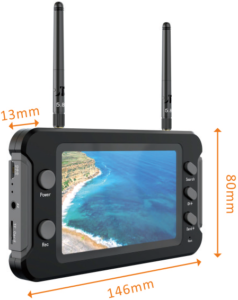

Dimension Diagram
Safety Instruction
1．Read the entire instruction manual to become familiar with the features of the product before operating.
2．Age Recommendation: Over 14 years old. Using any near eye displays on children under I4 can cause eye development problems.This is not a toy.
3． Please avoid wet or humid environments.
4．Video output and input connot work at the same time.
