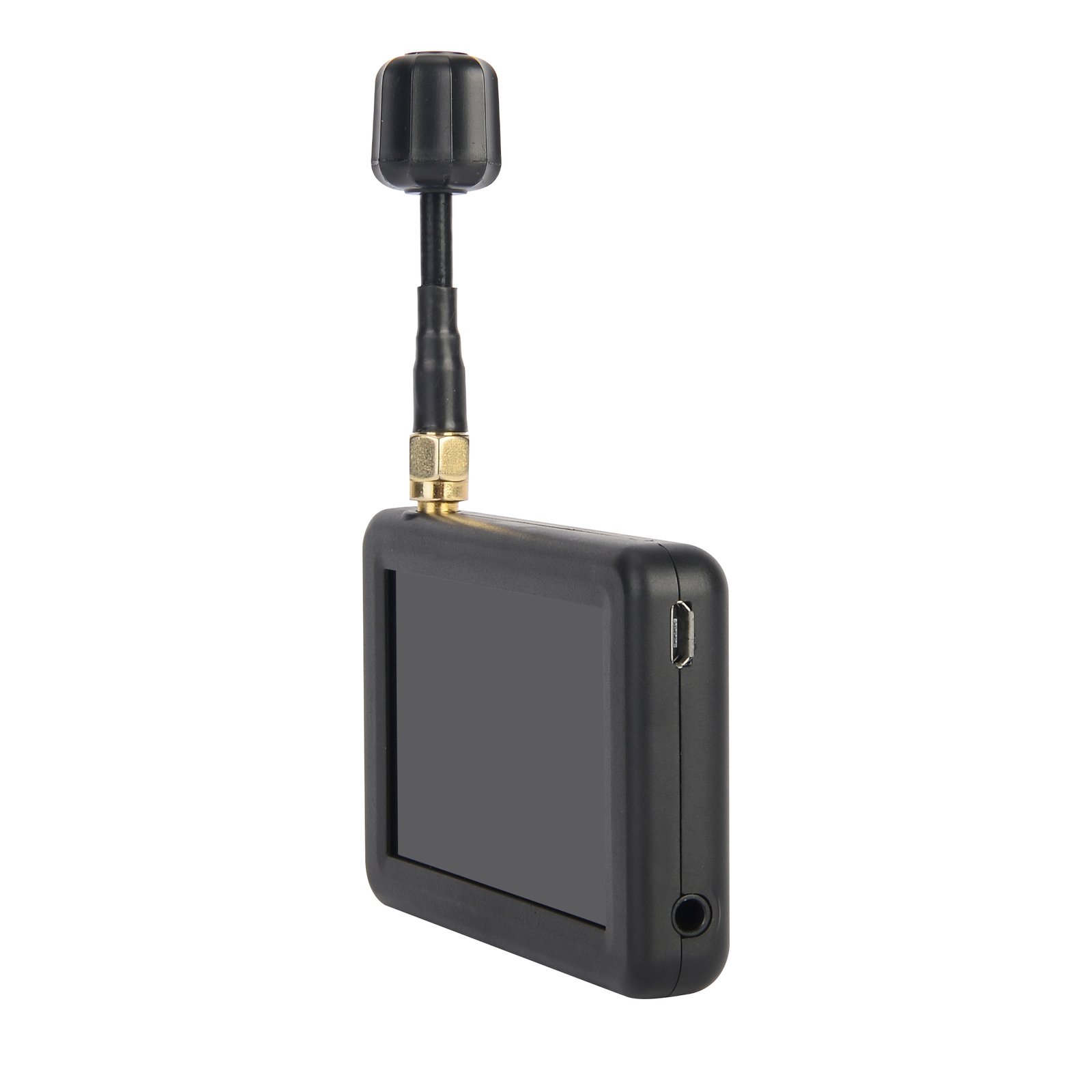

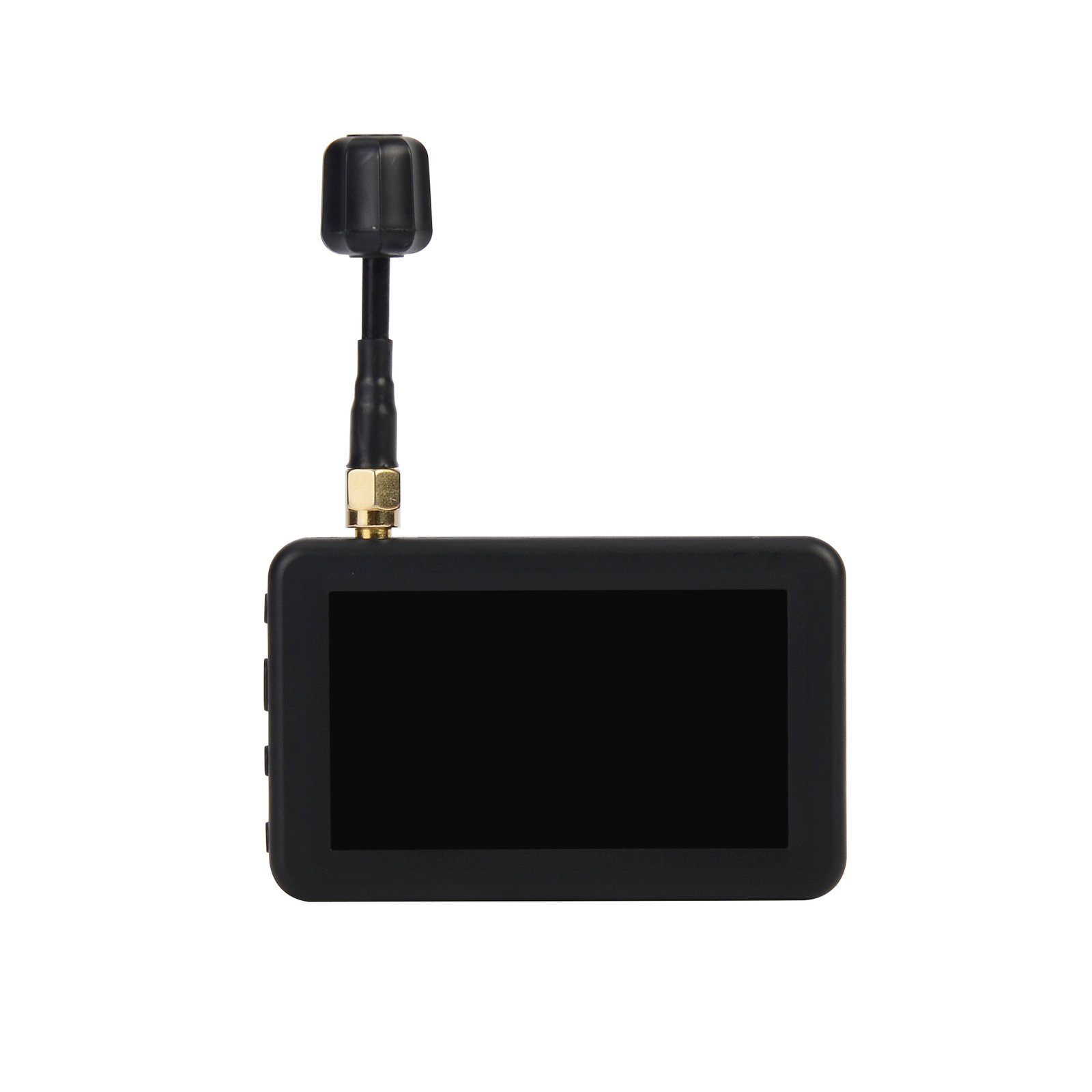

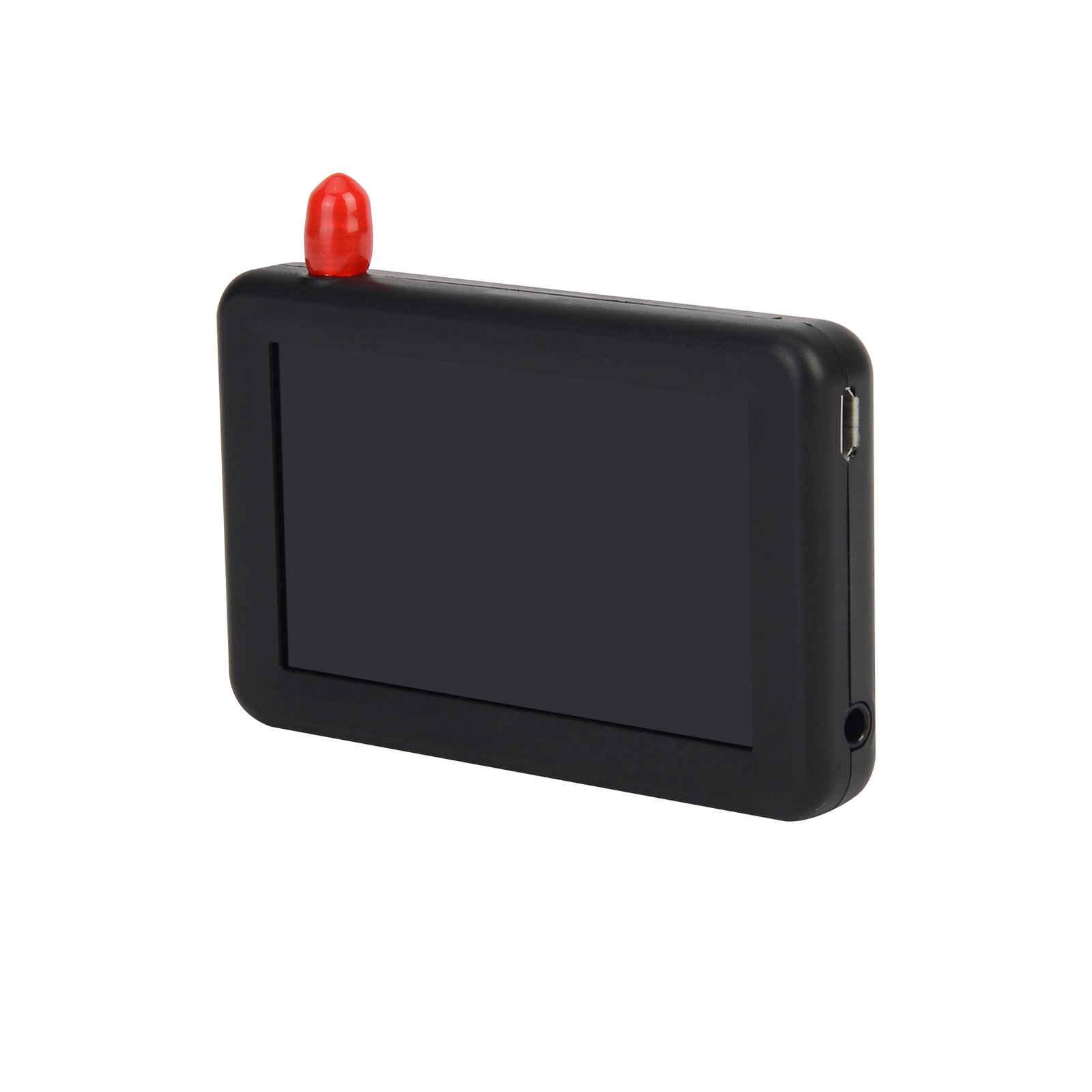

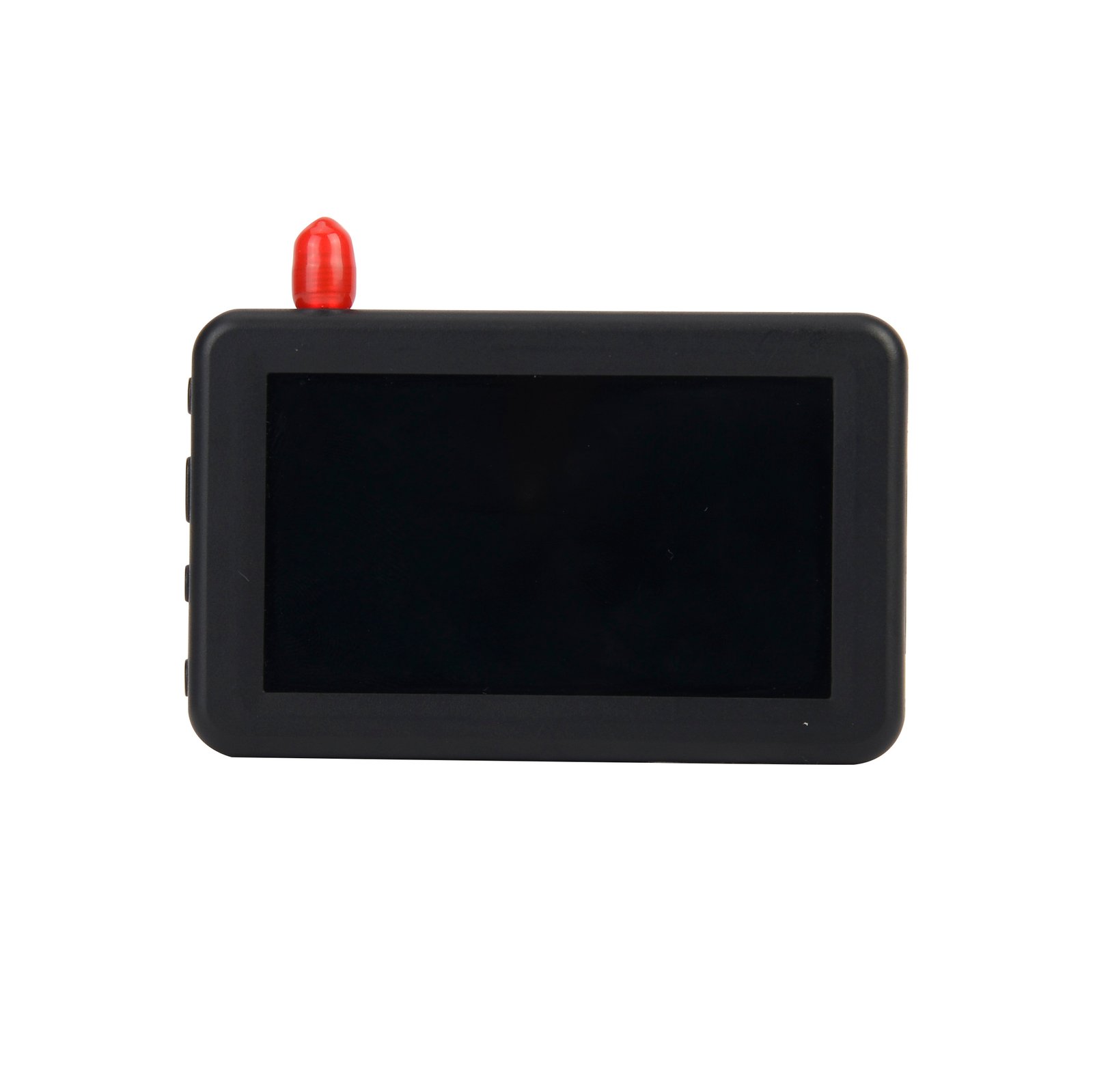

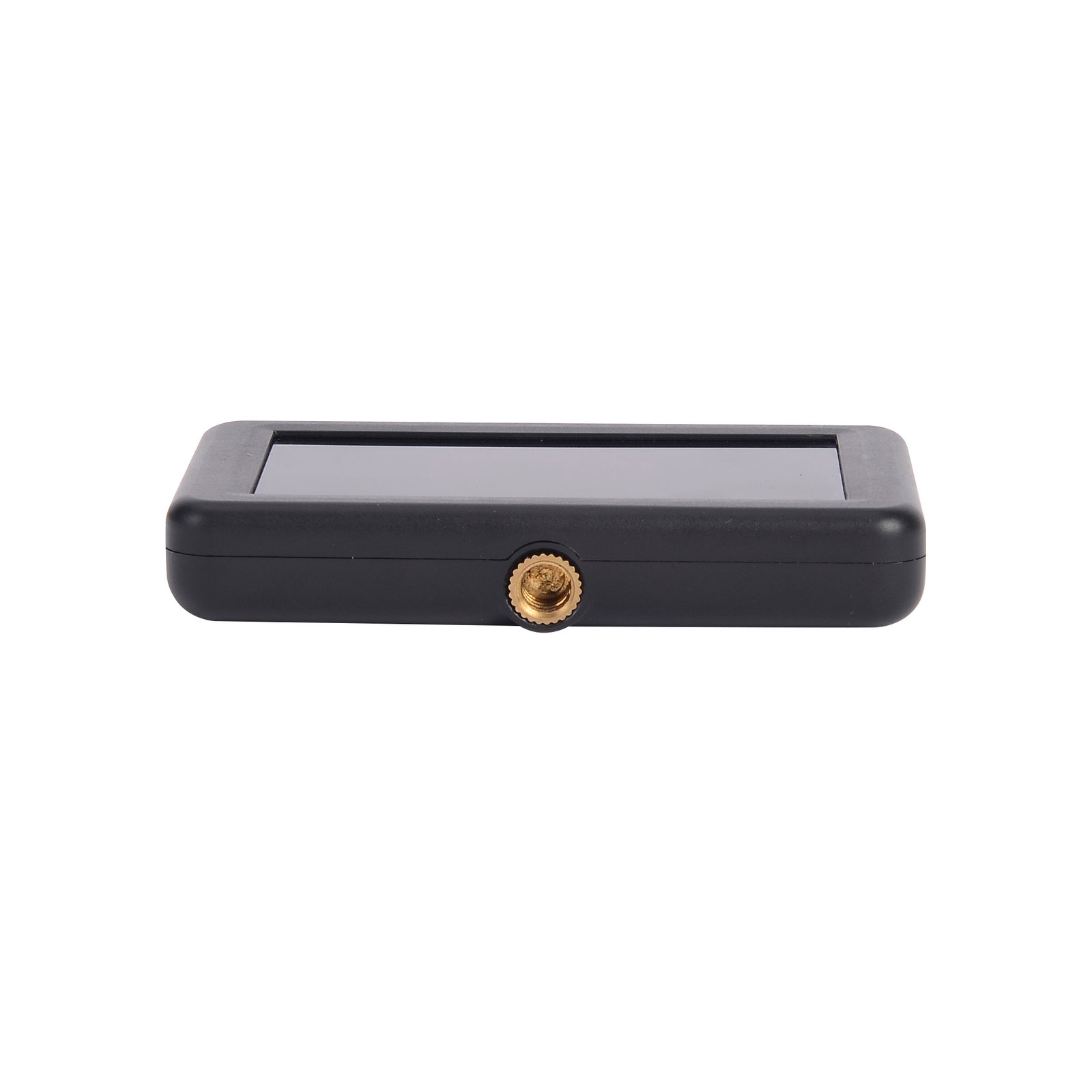

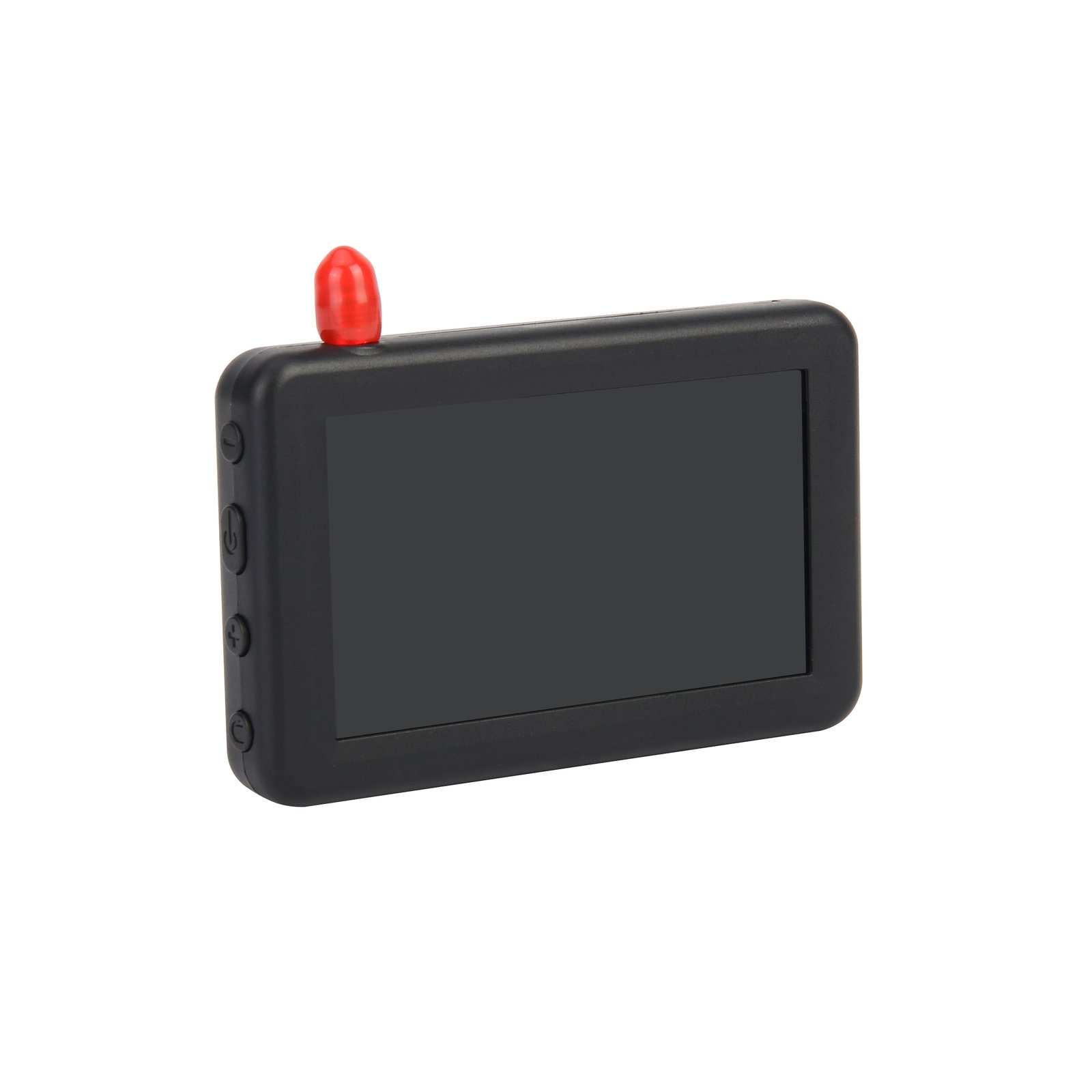

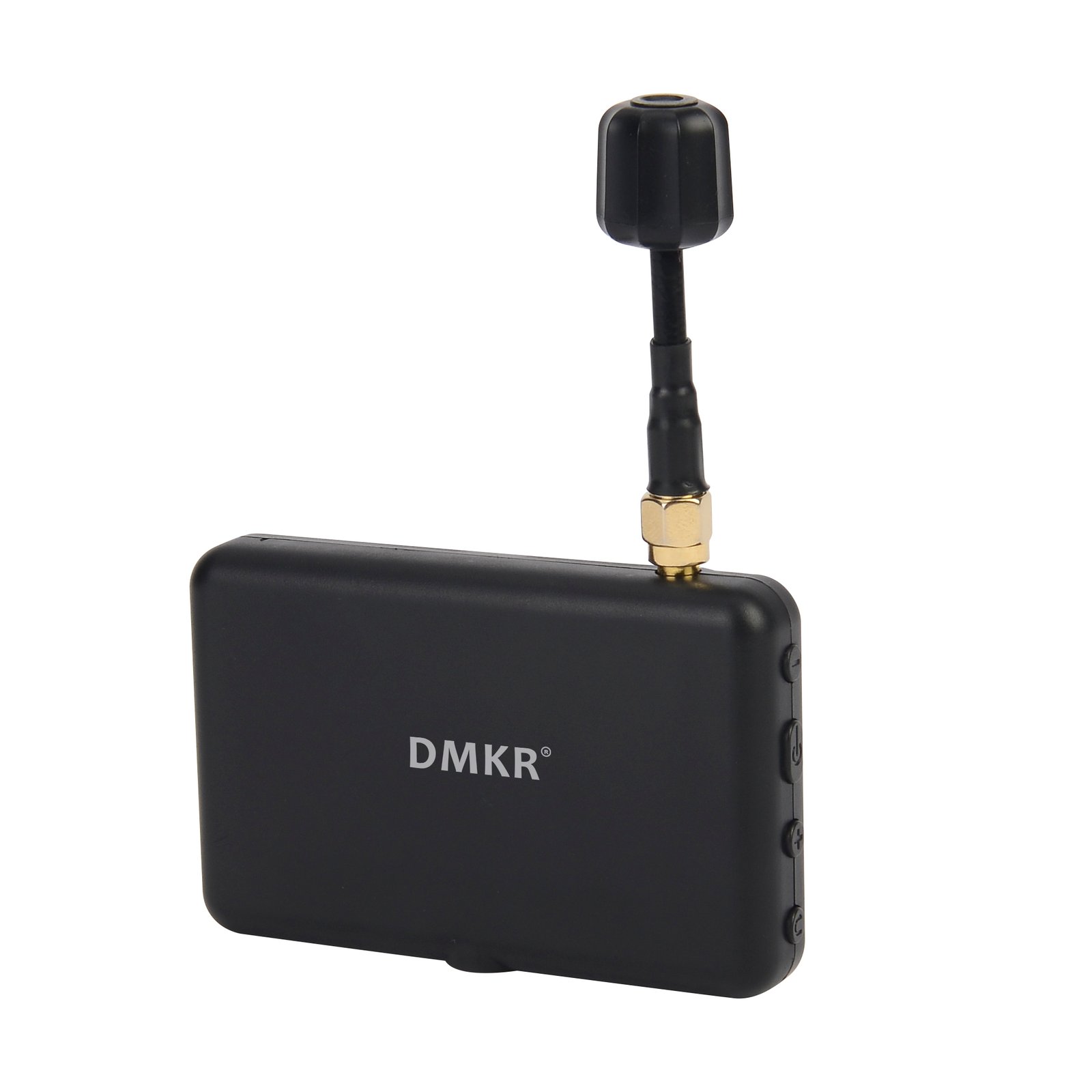

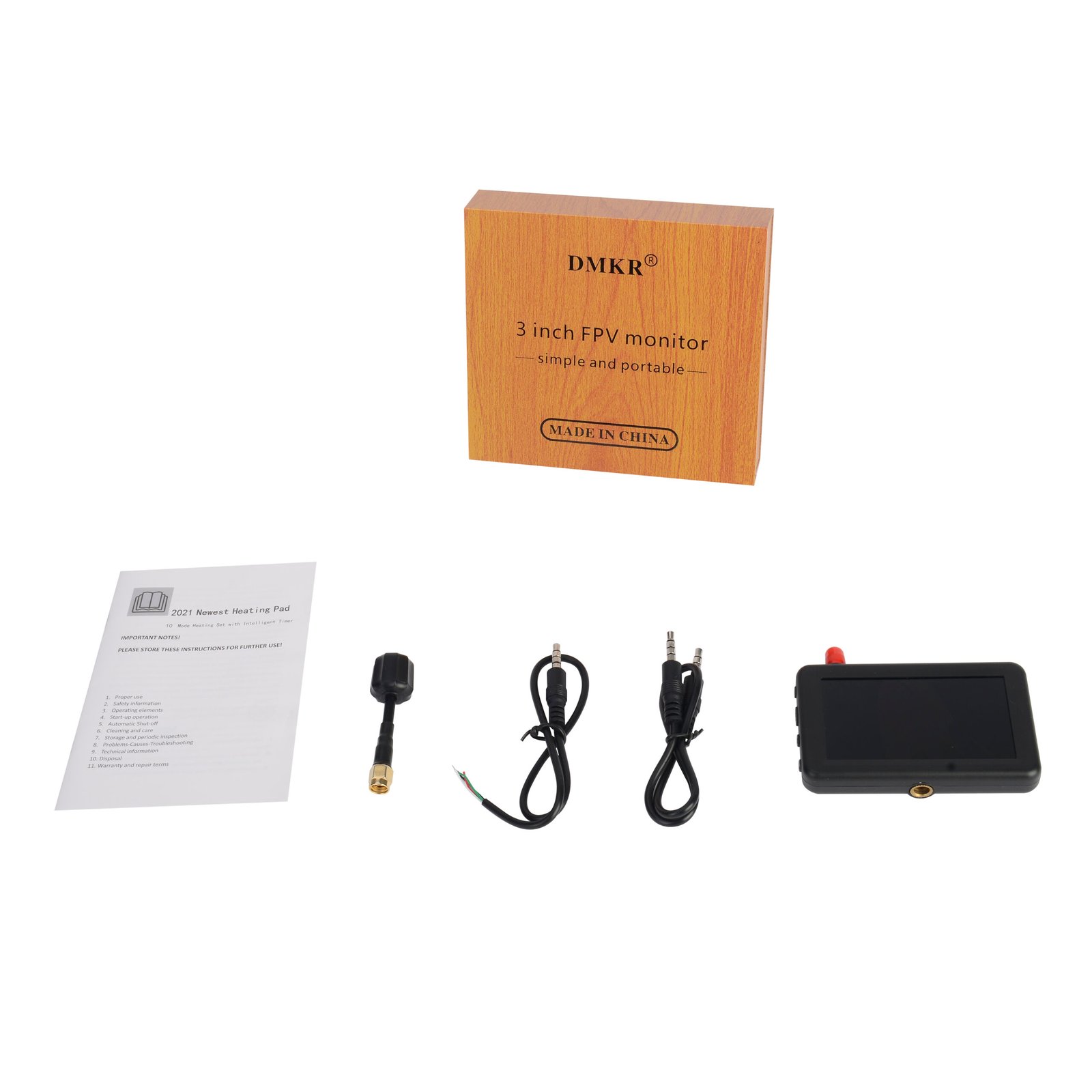

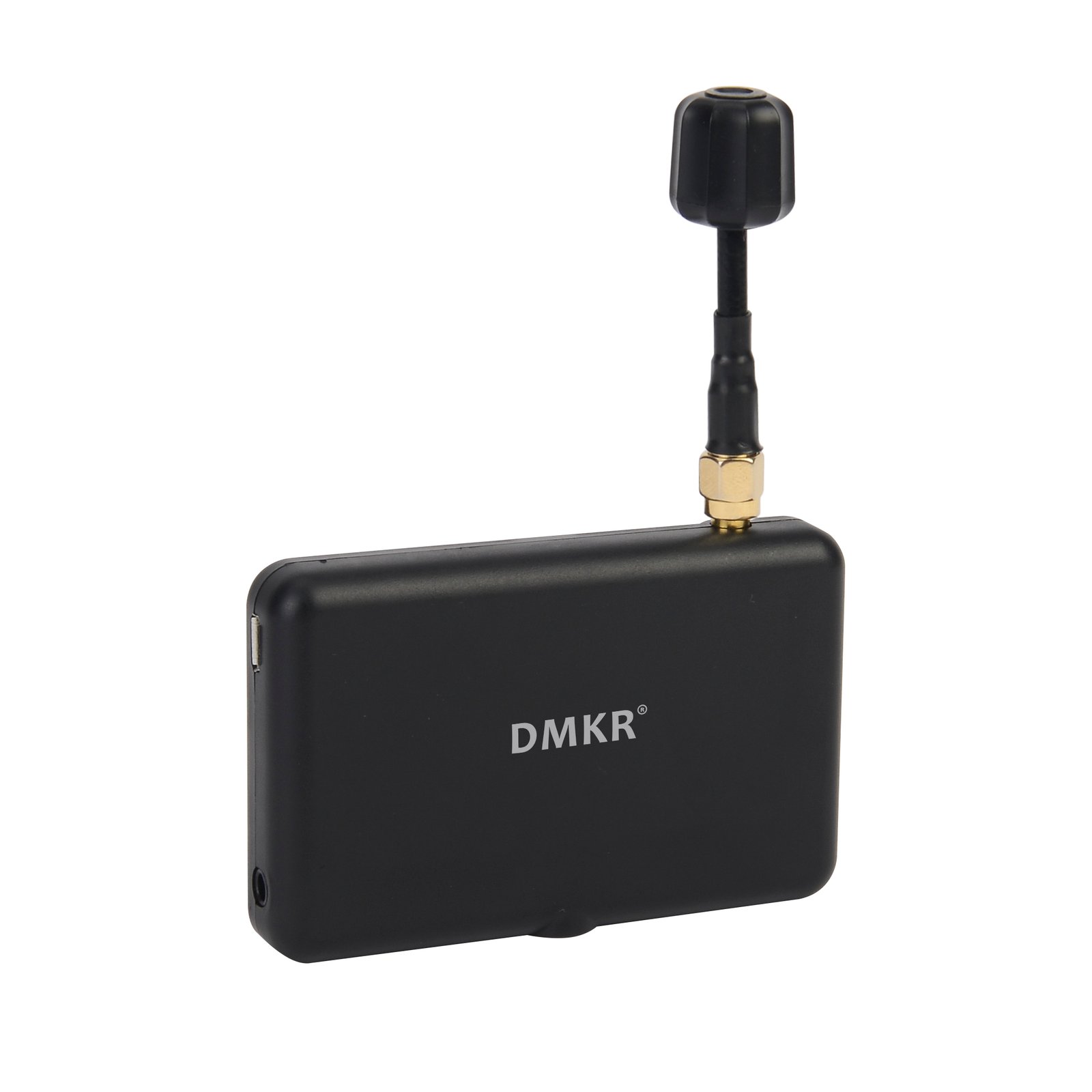

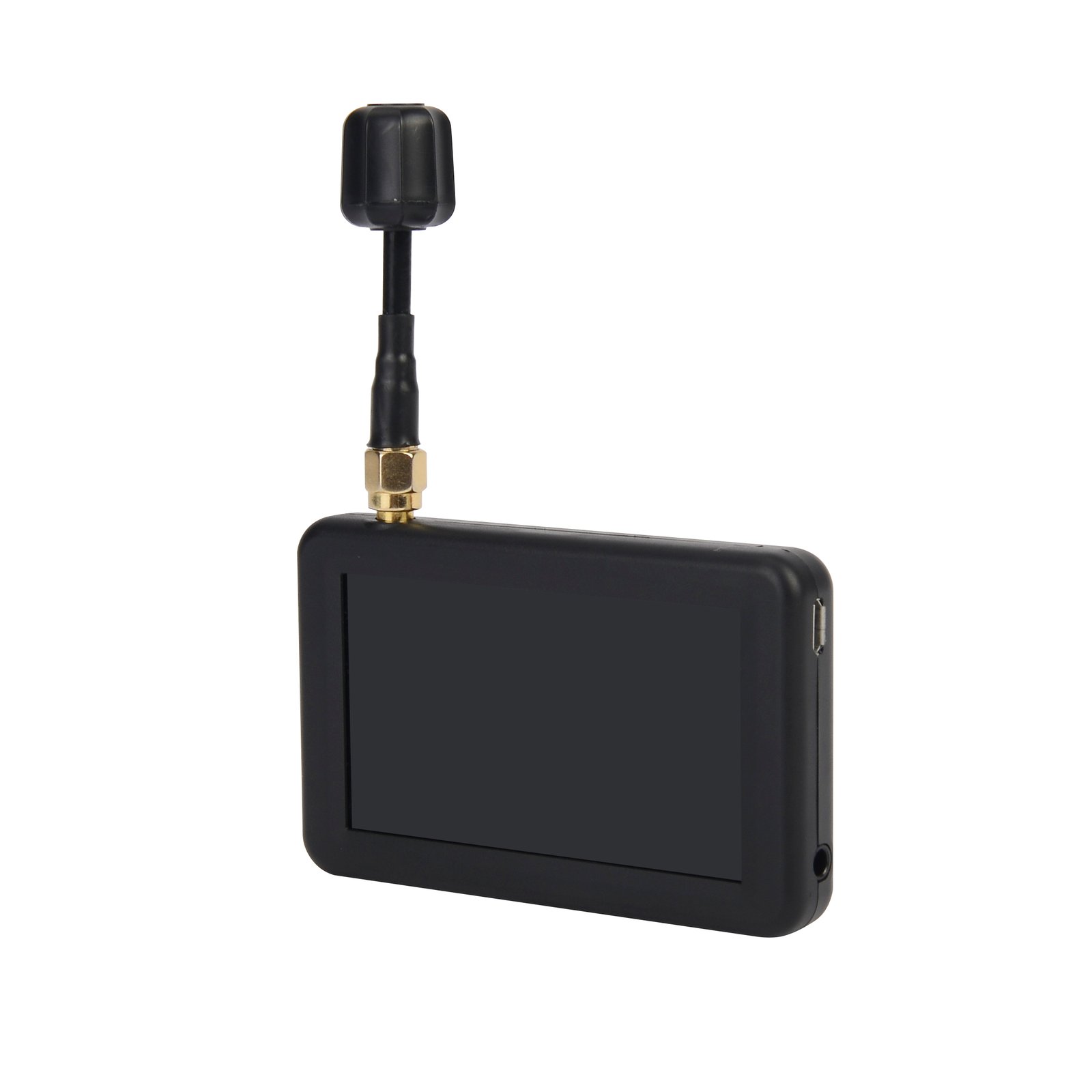

DMKR 3.0Inch 5.8GHz Receiver 40CH DJI 3.7V 800mAh FPV Analog Monitor

Product Introduction



Built-in 3.71/ 800mAh Battery Support a key search frequency

RaceBand 40 channel Auto-Searching

Real-time video return 5,8G FPV Receiver

Can be used as a receiver for “DJI” glasses

Product Feature



• Small size and light weight;
• Low power consumption, Working current 36(Y400mA;
• RaceBand 40 channel, Auto-Searching;
• 3.0 Inch 480*320 dot high brightness LCD screen;
• Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
• Built-in 3.7V/800mAh high-capacity Li-ion polymer Battery;
• Universal USB charging interface;
• Real-time video return, Very low time-delay;
• Bilingual menu in support of Chinese and English;
• Support external video signal input;
• Support AV signal output (Connect external DVR);
• It can be used as a receiver for and other video glasses. With interest screen function;



Product Specification



Name	Mini FPV Monitor
LCD Screen	Screensize: 3.0Inch IPS LCD
	Resolution: 480*320
	DisplayRatio: 16:9
	ViewAngle: 360′ without dead angle
	Brightness: 500cd/m² with high brightness back light LED
Video delay	Videotime-delay less than20ms
Interface	Antenna	RP-SMA male
	USB	To charge the battery
	AV Jack	External video signals input or internal Audio signal output
Languages	English and Chinese
power supply	Poweradapter: DC5V/1A(USB interface)
	Battery: 3.7V/800mAh,each full charge revive around 2hr working time
	PowerConsumption: the device operating current of 360-400mA at 3.7-4.2V built-in battery maximum charge current of 800mA
Wireless	FrequencyTable(MHz)
		CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
	BandA	5865	5845	5825	5805	5785	5765	5745	5725
	BandB	5733	5752	5771	5790	5809	5828	5847	5866
	BandE	5705	5685	5665	5645	5885	5905	5925	5945
	BandF	5740	5760	5780	5800	5820	5840	5860	5880
	BandR	5658	5695	5732	5769	5806	5843	5880	5917
Dimensions and weight	Dimension: 8.4cm*5.3cm*1.4cm packing size:12cm*11cm*25cm Weight: 65g(not included antennas) package weight:167g

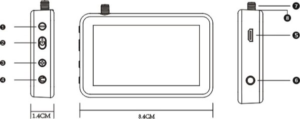

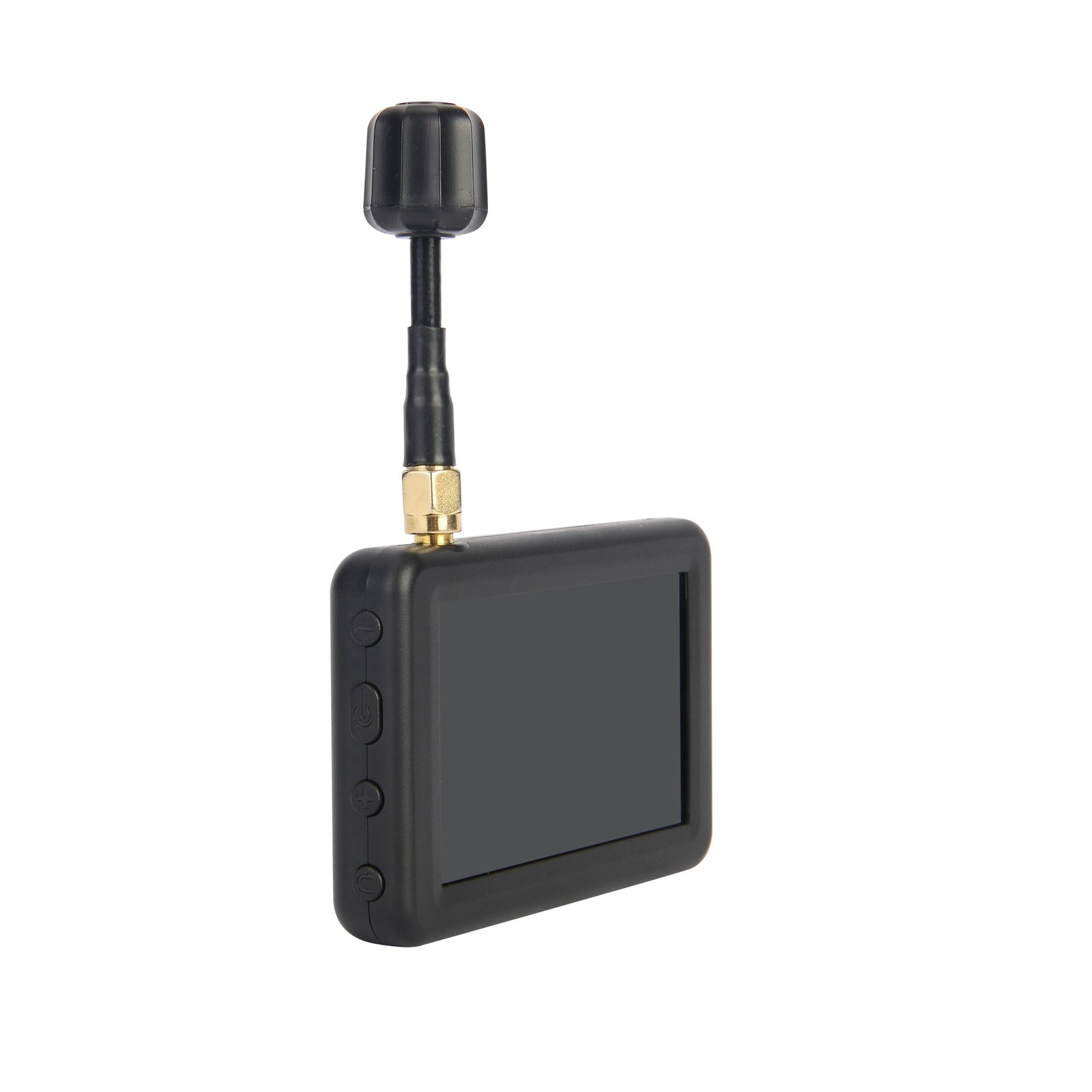

Controls Diagram





1.  Key 1: Short press for Band+(Change bands A-B-E-F-R circularly).
2. Key 2: Short press for Menu  mode; Long press (More than 3 sec) for Power ON/OFF
3.  Key 3: Short press for Channel* (Change channels 1-2-3-4-5-6-7-8 circularly).
4. Key 4: Short press for  (Automatic selection Of the strongest channel).
5. Micro-USB Charging port: Supports DC5V only.
6. AV Jack: In RF receiving mode can output AV signal; In AV mode can enter the video signal.
7. Antenna port : RP-SMA male.
8. Charging indicator: Red light when charging light; full power, the indicator goes Off.

Menu Operation Instruction



In normal mode,press key 2 to enter the MENU mode.

In MENU mode:

Key 2: Select the option bar

Key 1: Value –

Key 3:Value+

Key 4:Auto-Searching



AV Port Instruction







Dimension Diagram





Safety Instruction



1. Read the entire instruction manual to become familiar with the features of the product before operating.
2. Age Recommendation: Over 14 years Old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
3. Please avoid wet or humid environments.

4.Please use standard USB charger,charging voltage can only be 5V

5.AV output and video input cannot work at the same time,it is forbidden to insert external video in RF receiving mode

6.Please do not use corrosive cleaning agents to clean the product
